Replacing Your BioCal?


Upgrade to the more versatile, modern, and powerful MCH-1000(m)

Featuring a similar footprint with full-size cooler-heater performance, the CardioQuip MCH-1000(m) easily replaces your BioCal® 370. The MCH-1000(m) upgrades your set-up with a digital touchscreen, dripless connections, and a simplified cleaning procedure.




Medtronic BioCal® 370 CardioQuip MCH-1000(m)
Anodized Aluminum Cabinet Construction Stainless Steel
17x9x14 1/4in (43.2x22.9x36.2cm) Dimensions (LxWxH) 19x9x16in (48.3x22.9x40.6cm)
38 lbs (17.24kg) Weight (empty) 45 lbs (20kg)
2.25 gal (8.5L) Water Capacity 2.5 gal (9.5L)
Barbed hose fittings Water Connections Quick-connect, no-spill, two-way shutoff fittings. Hose kit included.
0-42°C Temp. Range 0-42°C
±0.5°C Temp. Accuracy ±0.3°C
0.1° Temp. Setting 0.1°
1500W Thermal System Power Rating 1600W
110-120 VAC, 60Hz, 15A Electrical 115 VAC, 60Hz, 16A




MCH-1000(m)


Full-Sized Performance in a Compact Footprint

The MCH-1000(m) packs full-sized cooler-heater performance in a compact footprint. No more removing ice if you need to switch from cooling to warming the patient. A 2.5 Gallon insulated, valved cold-water tank keeps ice cold, and 1600W of heat offers more efficient rewarming. It features:

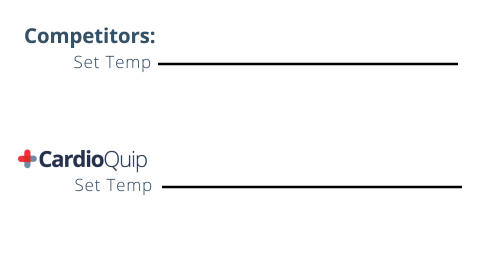

Adaptive Temperature Control

Adaptive Temperature Control.gif

Patented Adaptive Temperature Control uses an advanced algorithm to monitor water temperature and analyze its rate of change. What results is more efficient heating and cooling without the overshoot and "porpoising" of other cooler-heaters.

Touch-Screen Controls

  Simulated screen Image

The MCH-1000(m) uses a bright TFT color LCD to provide up-to-the-second information and quick temperature response. Set the temperature 3 different ways, including custom presets for ultra-fast access.

Dripless Connections

back of m dripless.png

Our dripless connectors prevent water leakage and provide quick and easy connections. Upgrade your hose set to the Dripless Anti-microbial Hose Kit and get silver-impregnated tubing and dripless connections at both ends.




Upgrade your Cart to a MiniCart

Introducing CardioQuip's lightweight stainless steel MiniCart. Designed to increase the portability of your MCH-1000(m) compact unit, the MiniCart is fully customizable to suit your specific needs.

Featuring:

  • Fully adjustable sliding shelf with tension lock
  • Medical Grade Casters
  • Dual Adjustable height infusion poles
  • Small footprint, easy to maneuver
  • Customized to fit MCH-1000(m)
  • Made in the USA


BioCal® is a registered trademark of Medtronic, PLC.
