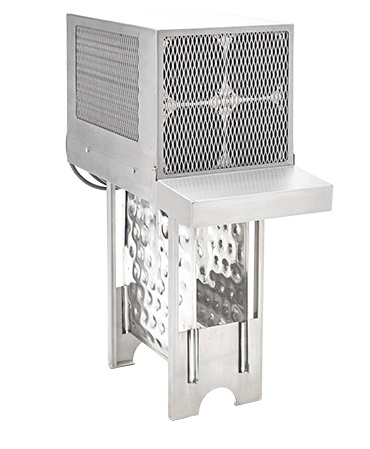

Refrigeration Module Specifications

Dimensions (LxWxH) Installed in MCH-1000(i): 26x16x45 in (66x42x114 cm)
Standalone: 20.5x10.5x26.5 in (52x27x68 cm)
Weight 72 lbs (33 kg)
Induced Airflow (ft3/min) <300
Power Consumption Max Peak 690W, Typ <600W
Electrical 115 VAC/ 60Hz, 6A
230 VAC/ 50Hz, 3A (Class 1, Type BF equipment per UL 2601-1)
Leakage current (µA) <100
Ground resistance (Ω) Max 0.1
Operating Environment 5-40°C, 0-90% humidity
